Kraft Support – Setup, Usage & Troubleshooting
Support resources for the enclosed Kraft series: Kraft Lite (40W diode laser) and Kraft Dual-laser (20W blue diode + 1.2W infrared, synchronized).
¶ About the Kraft

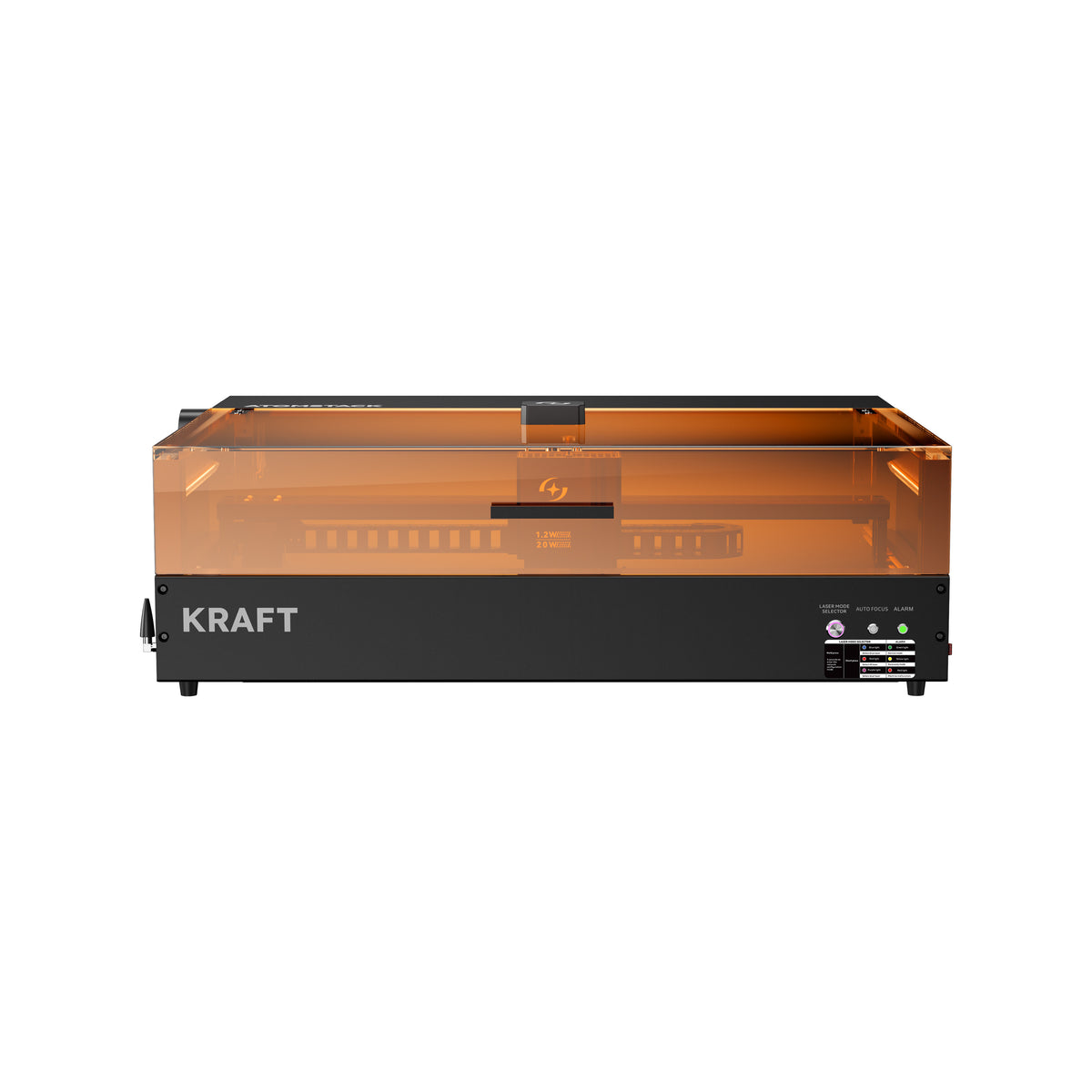

Kraft is AtomStack's enclosed desktop laser series. It comes in two variants that differ only in the laser module:
- Kraft Dual-laser – a 20W blue diode laser and a 1.2W infrared (IR) laser combined in one synchronized beam. One button switches between blue, infrared and dual-laser modes, so the same machine can engrave wood, leather and acrylic and mark metal. The 1.2W IR laser is for marking only and cannot cut.
- Kraft Lite – a 40W variable-power diode laser with one-click auto focus. It cuts 18 mm paulownia and 15 mm dark acrylic in a single pass.
The standard working area is 500 × 320 mm; with the R7 conveyor feeder (H4 riser required) it extends to 500 × 800 mm. A built-in 16 MP 4K camera positions designs to within 0.5 mm in AtomStack Studio and LightBurn. A honeycomb table is included; air assist is not – the optional F70 pump adds air assist and automatic fire extinguishing.
Kraft is certified Class 1 under IEC/EN 60825-1: a door interlock stops the laser when the lid opens, and the filtered window means no goggles are needed with the door closed. It resumes engraving after a power cut. Control it from AtomStack Studio, LightBurn, the AtomStack app over Wi-Fi, or the optional CR1 touchscreen.
Who it suits: the Dual-laser for makers and small businesses who want one enclosed machine for many materials, including metal marking; the Lite for users who mainly cut and engrave wood and dark acrylic and want more diode power.
